Features
One Cable Peripheral Connection
Instant access – plug peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 4 cable.
Eleven Interfaces
Includes three Thunderbolt 4, four USB 3.2 Gen 2 Type A (including one Type A charging), one RJ45 2.5 Gigabit Ethernet, and one 3.5 mm combo audio ports; one SD 4.0 card slot.
Two Thunderbolt 4 Ports for Peripherals
Connects two Thunderbolt peripherals directly (with support for daisy chaining additional peripherals). Also supports USB4 and USB 3 devices.
Powerful 10Gbps USB Type A Ports
Four USB 3.2 Gen 2 ports provide up to 7.5W of power each, supporting super-fast USB NVMe SSDs at up to full speed.
Built-in HDMI Port
Connect an HDMI directly, no adapter required.
Support for 4K, 5K, 6K and 8K @60Hz Displays
Depending on your computer, supports up to two 6K displays or a single 4K, 5K, 6K, or 8K display (see Displays Compatibility PDF).
Connect Another Display via Thunderbolt
Connect a Thunderbolt or USB-C display directly. Supports an HDMI or DisplayPort display with a Thunderbolt-compatible adapter (sold separately).
Charge Your Laptop
Provides up to 100W through the included Thunderbolt 4 cable to power and charge your laptop.
Fast SD Card Slot
Compatible with SD™, SDHC™, and SDXC™ memory cards; supports 320 MB/s read speeds with UHS-II SDXC cards. Also supports microSD™ cards when used with adapters.
Apple M Series Compatible
Supports all M1/M2 series Macs.
Intel® Mac and Windows Compatible
Supports Thunderbolt 3 Macs all Thunderbolt 4 Windows computers, and late model Thunderbolt 3 Windows computers.
Apple M series iPad Pro Compatible
Supports all M1/M2 series iPad Pro.
Specifications
Mac Compatibility
- Mac (M1/M2) supports one display
- Mac (M1/M2 Pro, M1/M2 Max, and M1 Ultra) supports two displays, including two Apple Pro Display XDRs
- Mac (Intel) with Thunderbolt 3 ports supports two displays
- macOS 13 (Ventura), 12 (Monterey), or 11 (Big Sur) required
iPad Pro Compatibility
- M series iPad Pro supports one mirrored monitor
Windows Compatibility
- Windows computer with a Thunderbolt 4 port or USB4 port(4)
- Windows computer with Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU
Displays & HDR Compatibility
For computers and displays compatibility information, see the following link:
Sonnet Tech Specs
Product Specifications
| Colour |
Space Grey |
| Series |
Thunderbolt 4 Dock |
| Range |
Echo |
| Manufacturer |
Sonnet |
| Warranty |
12 Months |
| Weight |
1.2 |
| Box Contents |
1 x Echo 11 Thunderbolt 4 HDMI Dock
1 x Power adaper
1 x Power cord
1 x 0.7-meter Thunderbolt 4 cable
Documentation |

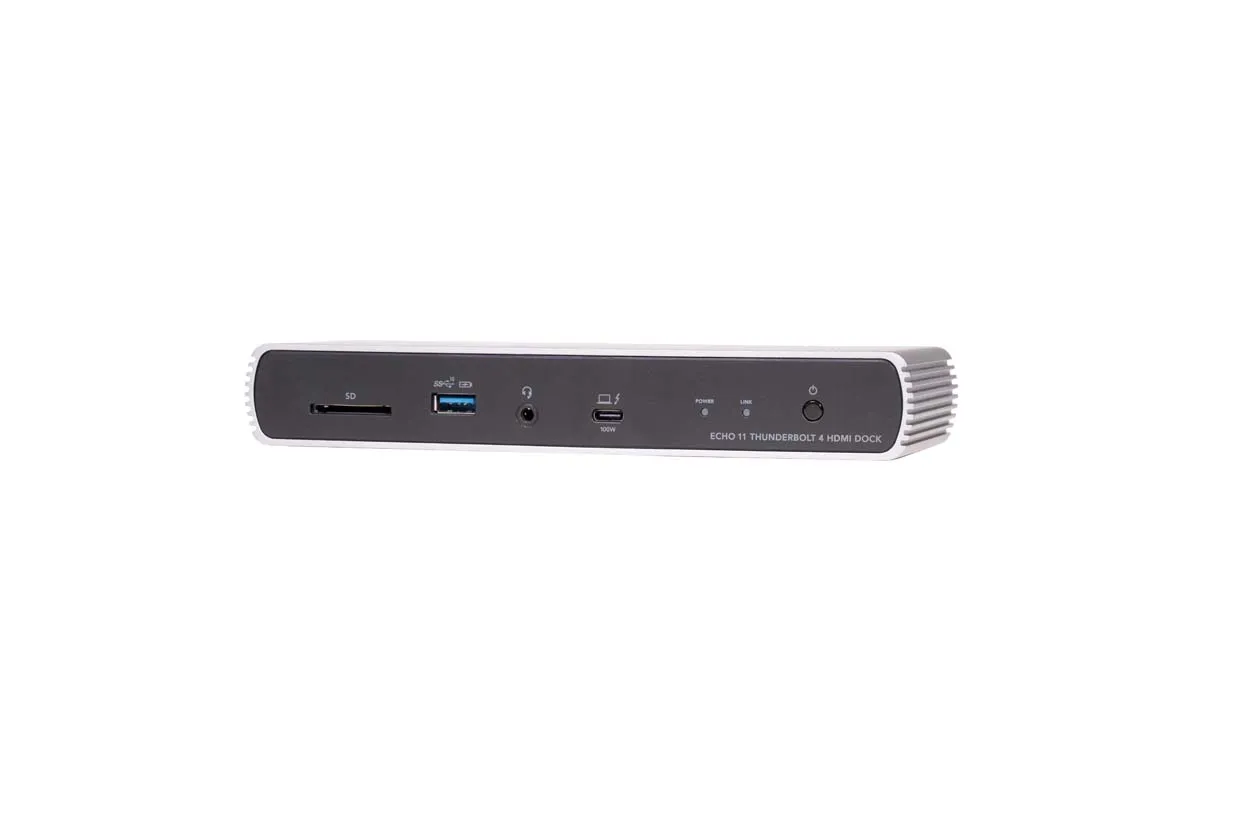

Echo 11 Thunderbolt 4 HDMI Dock
Universal Thunderbolt 4 Dock with Three Thunderbolt 4 Ports, One HDMI Port, 2.5Gb Ethernet, and 8K Display Support
Expand Your Connectivity Beyond the Expected
The connections you expect from a Thunderbolt™ dock plus the HDMI port and ultra-fast 2.5 Gigabit Ethernet support you need. With this amazing dock, a single cable connects your computer to your digital world. The Sonnet Echo™ 11 Thunderbolt 4 HDMI Dock is your universal docking station for today and tomorrow.
Your Peripherals and Power Your Computer with One Cable
Connect your Thunderbolt devices, monitor(s), USB peripherals, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? The Echo 11 Thunderbolt 4 HDMI Dock will even power it with up to 100W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.
Integrated HDMI Display Support
Echo 11 Thunderbolt 4 HDMI Dock was named in part after its most requested feature: a built-in HDMI port, enabling you to plug in an HDMI display directly to the dock. No HDMI Adapter Required
Faster Ethernet Transfers Across Existing Cabling
Featuring 2.5 Gigabit Ethernet, the Echo 11 Thunderbolt 4 HDMI Dock supports 2.5 Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains — 250 percent the speed of Gigabit Ethernet — without rewiring! In case you’re connecting to a switch without 2.5Gb Ethernet support, the Sonnet dock also supports 1 Gb/s and 100 Mb/s link speeds.
Dual Downstream Thunderbolt Ports – Versatile Connectivity for Work and Play
The Echo 11 Thunderbolt 4 HDMI Dock features three Thunderbolt 4 ports; one for connection/power to your computer, plus two for directly connecting Thunderbolt peripheral devices. The Thunderbolt peripheral ports also support USB4 and USB 3 peripherals, and even provide 15W power each to support the most demanding bus-powered Thunderbolt and USB peripherals.
Ideal for Mac and Windows computers, especially laptops with only one or two Thunderbolt ports because you can connect and charge on the same port.
Powerful 10Gbps USB Ports for Bus-powered Devices
The Echo 11 Thunderbolt 4 HDMI Dock features four USB 3.2 Gen 2 (10Gbps) Type A ports — one on the front, three on the back — to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 11 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.
